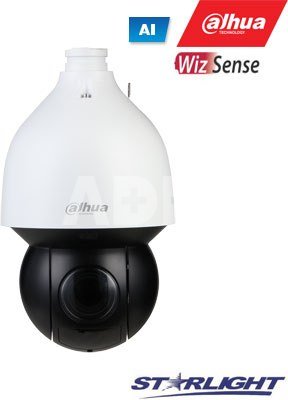

IP PTZ kam. 2MP SD5A232XA-HNR

Features:• 1/2.8" 2Megapixel STARVIS™ CMOS.• Powerful 32x optical zoom.• Starlight Technology.• Max. 50/60fps@1080P.• IR distance up to 150 m.• SMD PLUS.• Deep-learning-based perimeter protection.• Auto-tracking and IVS.• PoE+.• IP67.Technical Specifications:Camera• Image Sensor 1/2.8" CMOS.• Max. Resolution 1920 (H) × 1080 (V).• Pixel 2MP.• ROM 4GB.• RAM 1GB.• Electronic Shutter Speed 1/3–1/30000 s.• Scanning System Progressive.• Min. Illumination: Color: [email protected] B/W: [email protected] 0Lux (IR light on).• Illumination Distance 150 m (492.13 ft).• Illuminator On/Off Control Zoom Prio/Manual/SmartIR/Off.• Illuminator Number 4.Lens• Focal Length 4.9 mm–156 mm.• Max. Aperture F1.35–F4.4.• Field of View H: 62.8°–2.2°; V: 36.7°–1.3°; D: 69.2°–2.6°.• Optical Zoom 32x.• Focus Control Auto/Semi-Auto/Manual.• Close Focus Distance 1 m–1.5 m (3.28 ft–4.92 ft).PTZ• Pan/Tilt Range Pan: 0°–360°; Tilt: -15°–+90°.• Manual Control Speed Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s.• Preset Speed Pan: 400°/s; Tilt: 300°/s.• Presets 300.• Tour 8 (up to 32 preset per tour).• Pattern 5.• Scan 5.• Speed Adjustment Support.• Power-off Memory Support.• Idle Motion Preset/Tour/Pattern/Scanning.• Protocol DH-SD.• Pelco-P/D(Auto recognition).General Intelligence• Event Trigger: Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.• IVS Object Abandoned/Missing.Artificial Intelligence• Smart Capture Support human, motor vehicle and non-motor vehicle image capture.Perimeter Protection• Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.• SMD PLUS Support• Auto Tracking Support• Face Detection SupportVideo• Compression H.265/H.265+/H.264+/H.264/MJPEG (Sub Stream)• Streaming Capability 3 streams• Resolution: 1080P (1920 × 1080); 1.3 M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240).Frame Rate• Main stream: 1080P/1.3 M/720P (1–50/60 fps), Sub stream 1: D1/CIF (1–25/30 fps), Sub stream 2: 1080P/1.3M/720P/D1/CIF (1–25/30 fps).• Bit Rate Control Variable/Constant.• Bit Rate H.265/H.264: 3 kbps–20480 kbps.• Day/Night Auto(ICR)/Color/B/W.• BLC Support.• WDR 120dB.• HLC Support.• White Balance Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp.• Gain Control Auto/Manual.• Noise Reduction 2D/3D.• Motion Detection Support.• Region of Interest (RoI) Support.• Image Stabilization Electronic.• Defog Support.• Digital Zoom 16x.• Flip 180°.• Privacy Masking Up to 24 areas, and up to 8 areas in the same view.Audio• Compression G.711A;G.711Mu;G.726;AAC;MPEG2-Layer2;G.722.1;G.729;G.723.Network• Ethernet 1 RJ-45 Port 10/100Base-T.• Protocol: IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP.• Interoperability ONVIF Profile S&G&T; CGI.• Streaming Method Unicast/Multicast.• User/Host 20 (Total bandwidth 64M).• Storage FTP; Micro SD card (256G); NASBrowser• IE7 and newer versions, Chrome 42 and older versions, Firefox 52 and older versions, Safari.• Management Software Smart Player / Smart PSS / DSS / Easy4ip.• Mobile Phone IOS/Android.Certifications• CE: EN55032/EN55024/EN50130-4.• FCC: Part15 subpartB,ANSI C63.4- 2014.• UL:UL60950-1+CAN/CSA C22.2,No.60950-1.Port• Audio Input 1 (LINE IN; bare wire).• Audio Output 1 (LINE OUT; bare wire).• Alarm I/O 2/1.Power• Power Supply AC24V/3A±25%.• POE+.• Power Consumption 12W 20W (IR light on).Environment• Operating Temperature –40°C to +70°C (–40°F to +158°F).• Operating Humidity =95%RH.• Protection IP67; TVS 6000V lightning protection; surge protection.Structure• Casing Metal.• Dimensions F190 mm×332 mm (7.48"×13.07“).• Net Weight 4.7 kg (10.36 lb).• Gross Weight 8 kg (17.64 lb).
