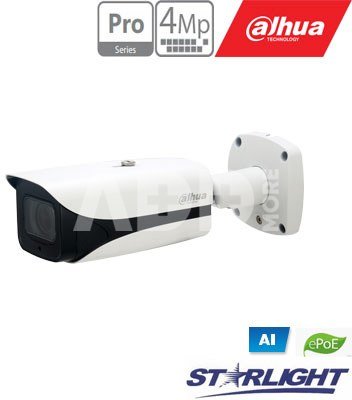

IP network camera 4MP 2K IPC-HFW5442E-ZE

Features: • 1/1.8” 4Megapixel progressive scan CMOS • H.265 & H.264 triple-stream encoding • 25/30 fps@2688 × 1520, 50/60 fps@1080 (1920 × 1080) • WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC • Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS • 2.7 mm–12.0 mm motorized lens • 2/1 Alarm in/out, 1/1 audio in/out • Max. IR LEDs Length 50 m • Micro SD memory, IP67, Technical Specifications: Camera • Image Sensor 1/1.8” 4Megapixel progressive scan CMOS • Effective Pixels 2688 (H) × 1520 (V) • RAM/ROM 1 GB/128 MB • Scanning System Progressive • Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s • Minimum Illumination 0.002 [email protected] • IR Distance Distance up to 50 m (164 ft) • IR On/Off Control Auto/Manual • IR LEDs 4 Lens • Lens Type Motorized • Mount Type Board-in • Focal Length 2.7 mm–12.0 mm • Max. Aperture F1.8 • Angle of View H: 114°–47°, V: 62°–26° • Optical Zoom 4.4x • Aperture Type Auto • Close Focus Distance 1.2 m Pan/Tilt/Rotation • Range Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° Artificial Intelligence • Face Capture: Support face image capture • Face Attributes: Support 6 kinds of face attributes extraction: Age, Gender,Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard • Perimeter Protection Tripwire, Intrusion (Human & Vehicle classification) • People Counting: Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection General Intelligence • Event Trigger: Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly • General Intelligence Object Abandoned/Missing Video • Compression H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG (sub stream) • Streaming Capability 3 Streams • Resolution: 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 ×720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF(352 × 288/352 × 240) • Frame Rate: Main Stream: 2688 × 1520 (1 fps–25/30 fps) 2560 × 1440 (1 fps–25/30 fps) 1920 × 1080 (1 fps–50/60 fps), Sub Stream: D1 (1 fps–25/30 fps) D1 (1 fps–50/60 fps), Third Stream: 1080P (1 fps–16 fps) • Bit Rate Control CBR/VBR • Bit Rate H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–8192 Kbps • Day/Night Auto(ICR)/Color/B/W • BLC Mode BLC/HLC/WDR (140 dB) • White Balance Auto/Natural/Street Lamp/Outdoor/Manual • Gain Control Auto/Manual • Noise Reduction 3D DNR • Motion Detetion Off/On (4 Zone, Rectangle) • Region of Interest Off/On (4 Zone) • Electronic Image Stabilization (EIS) Support • Smart IR Support • Defog Support • Digital Zoom N/A • Flip 0°/90°/180°/270° • Mirror Off/On • Privacy Masking Off/On (4 Area, Rectangle) Audio • Compression G.711a, G.711Mu, AAC, G.726, G.723 Network • Ethernet RJ-45 (10/100 Base-T) • Protocol: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x • Interoperability ONVIF (Profile S/Profile G), CGI, Milstone, Genetec, P2P • Streaming Method Unicast/Multicast • Max. User Access 20 Users Edge Storage • NAS • FTP • Micro SD card 256 GB • Web Viewer IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12) • Management Software Smart PSS, DSS, P2P • Smart Phone iOS, Android Certifications • CE-LVD: EN60950-1 • CE-EMC: Electromagnetic Compatibility Directive • 2014/30/EU • FCC: 47 CFR FCC Part 15, Subpart B • UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Interface • Video Interface N/A • Audio Interface 1/1 channel In/Out • RS485 N/A • Alarm 2 channel In: 5mA 5V DC • 1 channel Out: 300mA 12V DC Electrical • Power Supply DC 12V (±30%), PoE (802.3af) (Class 0) • Power Consumption <10.9W Environmental • Operating Conditions -30° C to +60° C (-22° F to +140° F)/10%RH–95%RH • Strorage Conditions -30° C to +60° C (-22° F to +140° F) • Ingress Protection IP67 • Vandal Resistance IK10 Construction • Casing Metal, plastic • Dimensions 273.2 mm × 95.0 mm × 95.0 mm • Net Weight 1.11 kg (2.44 lb) • Gross Weight 1.51 kg (3.33 lb)
