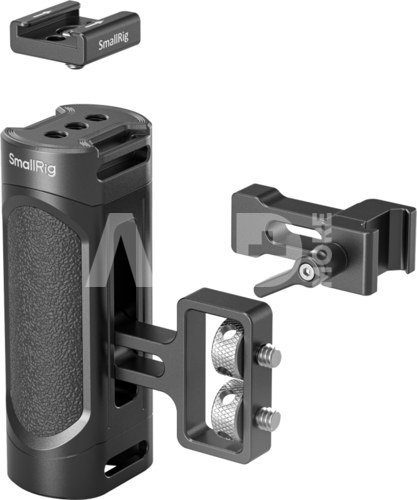

SmallRig mini Side Handle Kit 4816 is designed to reduce the arm’s burden, facilitate camera movement, and provide accessory mounting points. The kit includes one handle and two handle adapters, one cold shoe. The handle is embedded with anti-slip, anti-freeze silicone coverings, with a comfortable grip experience. The handle features two 1/4"-20 threaded holes with an 18mm (0.7in) spacing, ensuring broad compatibility, it can also be adapted to the cage with built-in NATO rail.
1. Ergonomic design and embedded anti-slip, anti-freeze silicone coverings, with comfortable grip experience.
2. Strong universality, equipped with two types of handle Adapters.
3. Can be attached to both sides of a cage and adjusted up and down to find the best position.
4. 1/4"-20 threaded holes & strap holes on top.

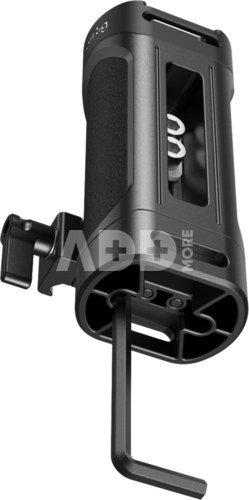

5. Built-in magnetic spanner for easy assembly and disassembly.
SmallRig mini Side Handle Kit 4816 is designed to reduce the arm’s burden, facilitate camera movement, and provide accessory mounting points. The kit includes one handle and two handle adapters, one cold shoe. The handle is embedded with anti-slip, anti-freeze silicone coverings, with a comfortable grip experience. The handle features two 1/4"-20 threaded holes with an 18mm (0.7in) spacing, ensuring broad compatibility, it can also be adapted to the cage with built-in NATO rail. The cage without built-in NATO rail can be converted by purchasing NATO rails 1409 and 2172. It can be attached to both sides of a cage and adjusted up and down to find the best position. Three 1/4"-20 threaded holes on top support Magic Arm 2070B for monitor and Cold Shoe 2260 for microphone, LED light, etc.; strap holes on both sides allow attaching a wrist strap to increase stability. At the bottom, there is a built-in magnetic spanner for easy assembly and disassembly.
Note:
1. NATO Rail 1409 and 2172 are recommended for cages with no built-in NATO rail.
2. The maximum load-bearing of the handle is 6kg (13.2 lbs).
3. The handle is compact and lightweight. For larger hand grips, please visit our official website to explore alternative handle options.
Compatible With
1. Two 1/4"-20 threaded holes with a spacing of 18mm (0.7in)
2. SmallRig cage with built-in NATO rail

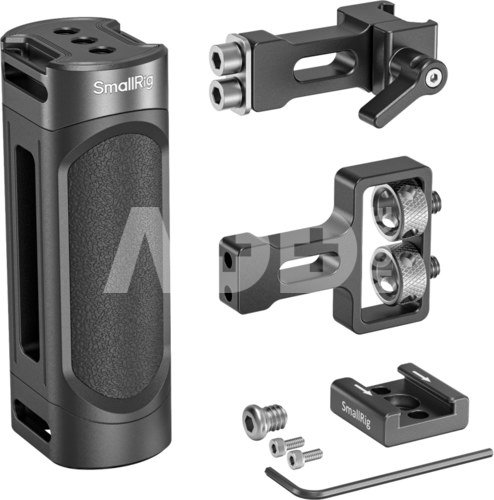

Handle x 1
Handle Adapter x 2
Cold Shoe x 1
1/4"-20 Screw x 1
M2.5 Screw x 2
Allen Wrench x 1
Product Dimensions: 109.0 x 80.5 x 42.0mm / 4.3 x 3.2 x 1.7in
Package Dimensions: 136.0 x 102.5 x 51.0mm / 5.4 x 4.0 x 2.0in
Product Weight: 180.0 ± 5.0g / 6.4 ± 0.2oz
Package Weight: 245.0 ± 5.0g / 8.6 ± 0.2oz
Material(s): PC+ABS, Aluminum Alloy, Stainless Steel, Silicone
