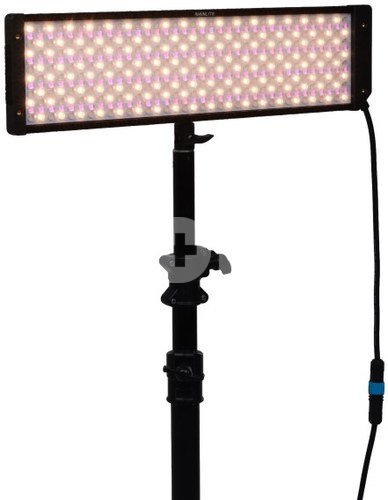

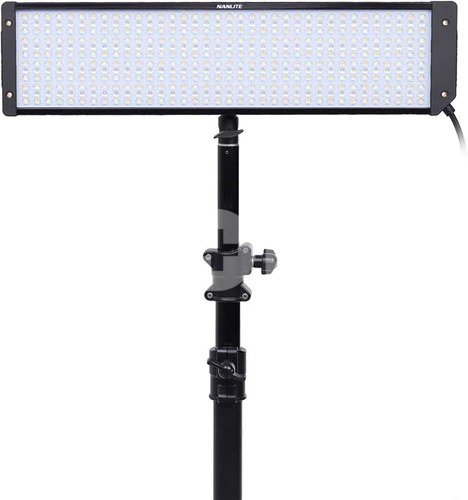

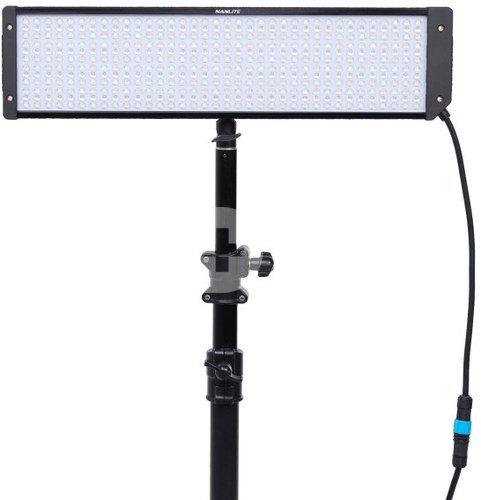

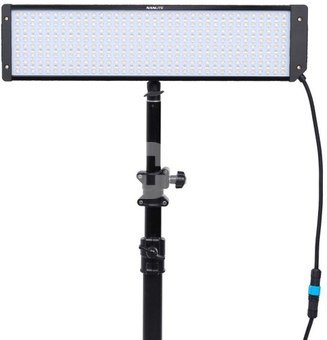

Nanlite PavoSlim 60CL LED panel

Introducing Nanlite PavoSlim 60CL LED panel! With its metal housing, the PavoSlim 60CL proves that slimness and ruggedness are not contradictory. Even when equipped with a complete set of modifiers and accessories for installation, it is still lighter and thinner compared to traditional light mats. This makes it indispensable whether in small studios, low-ceiling locations or film and television sets with strict requirements. Rated Power: 72W, weight: 0.98 kg, thickness: 1.86 cm.















EFFICIENT DESIGN



Maximum Output - 7,094 lux@1m Light only / 5600K. The PavoSlim 60CL achieves four times the output of similar mat type LED lights. To accomplish this, the NANLITE team has developed a dedicated optical system which maximizes output and heat dissipation.







RAPID DEPLOYMENT

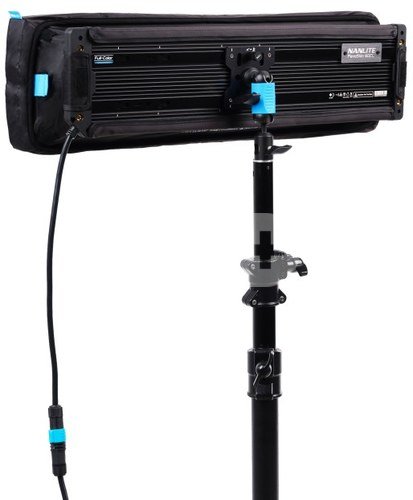

Every element of the PavoSlim 60CL is designed for rapid deployment on-set, on-location or in the photo studio. The accessories are designed with for easy and rapid setup, enabling effortless installation to be completed within moments. This philosophy is carried through to the included softbox with its innovative compression design that can be set up or collapsed in seconds. It can even be collapsed and left on the panel for transport. The back of the fixture has multiple 1/4"-20 sockets for flexible mounting in various situations. The control unit is designed so it can mount via a quick release plate, which is compatible with the included quick release clamp for mounting to light stands or truss(also found on NANLITE Forza II series fixtures). The control unit has a useful hand-carry strap which can also be used to hang it from a light stand.











LENGTHENED DESIGN, EASIER SETUP

The PavoSlim 60CL features a slim, elongated design easuring 602 × 152 × 18.6 mm. The shape of the PavoSlim 60CL makes it especially well suited for in-vehicle, confined spaces and low ceiling shots. The utility of the LED panel is further enhanced by its super light weight, making it possible to mount practically anywhere, or handhold on-set for extended periods if required.





VARIOUS MODES

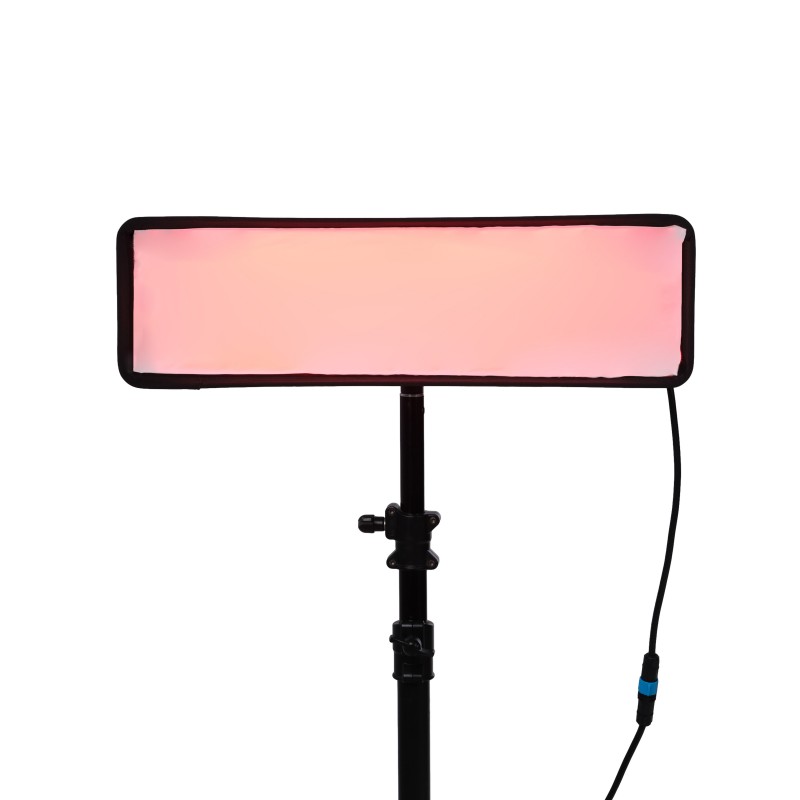

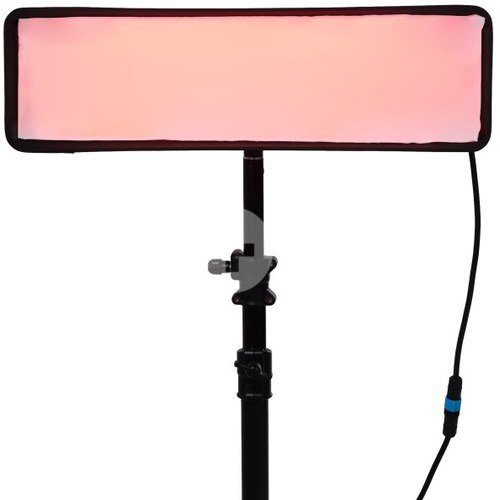

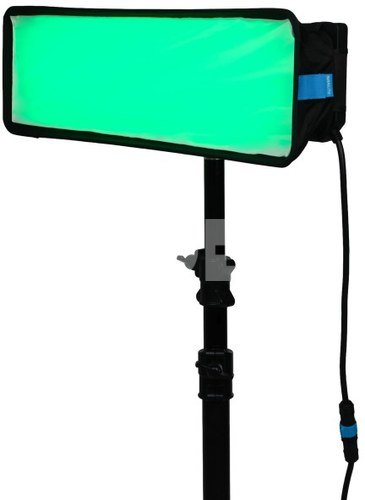

With RGBWW color mixing technology, PavoSlim 60CL provides HSI, RGBW, Gel and Effects modes. Importantly it also has a green/magenta (G/M) shift function for accurate matching with other light sources.







MULTIPLE ACCESSORIES

Magnetic Base Adapter with 1/4"-20 Thread Set The PavoSlim 60CL has a 1/4"-20 mount built into each corner which can be paired with the magnetic base adapter with 1/4"-20 thread set, making installation on magnetic metal surfaces quick and easy.



















EXTENSION CABLE

The PavoSlim 60CL has a solid 0.4M DC connection cable, which in turn is connected to the control unit through a 2.6m DC connection cable. This can be extended with another 2.6M connection  cable if required.

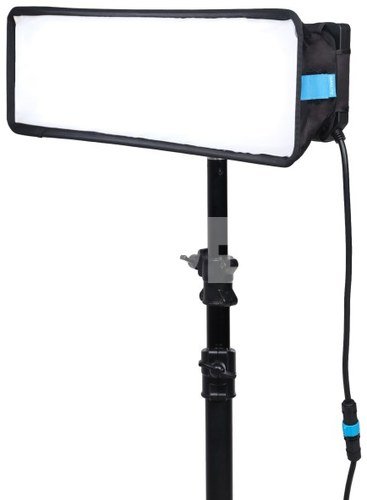

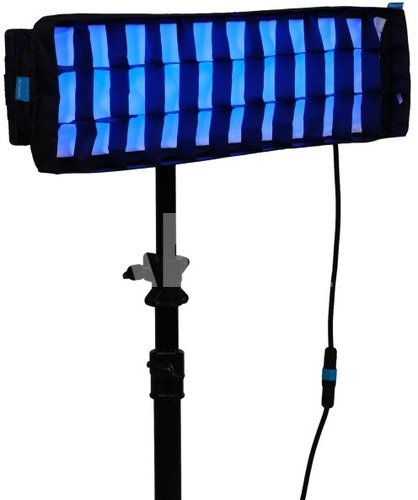

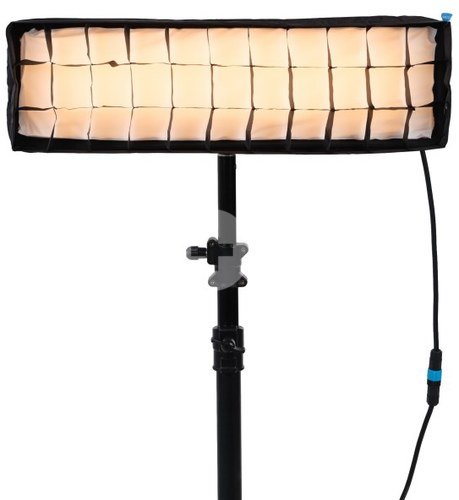

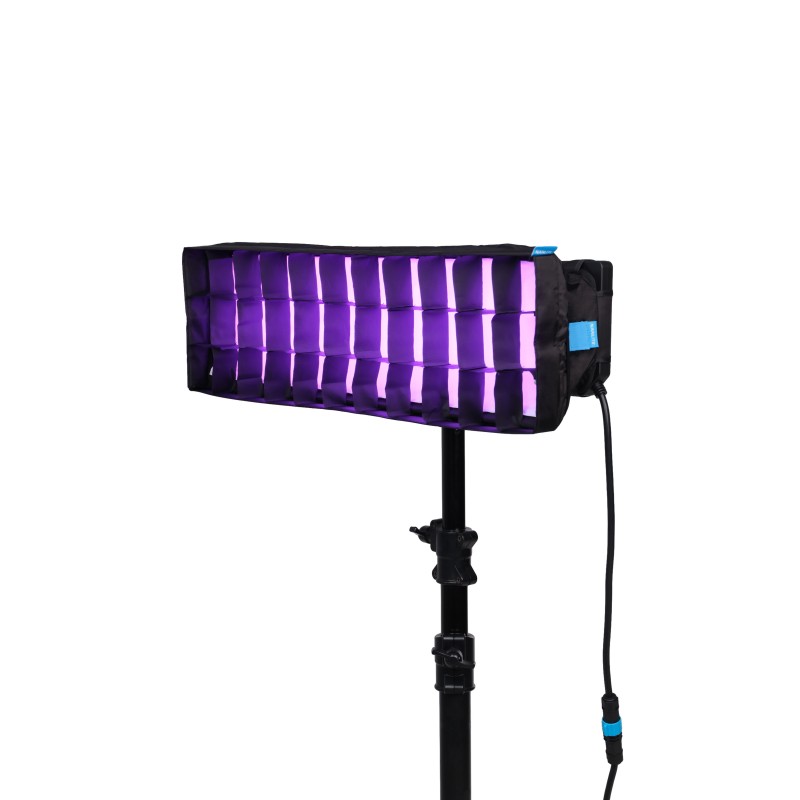

EXCLUSIVE SOFTBOX

Included an exclusive quick-release softbox, featuring convenient setup and storage, suitable for various scenarios.







BENEFITS AND WAYS TO USE NANLITE PAVOSLIM 60CL LED PANEL



The Nanlite PavoSlim 60CL LED panel offers numerous benefits and versatile usage options, making it an essential tool for various lighting needs. Its exceptionally thin and lightweight design, combined with a rugged metal housing, allows for easy portability and rapid deployment in any setting, from small studios and low-ceiling locations to confined spaces like vehicles. With a maximum output of 7,094 lux at 1 meter, the PavoSlim 60CL provides four times the output of similar LED light mats, thanks to its advanced optical system that maximizes both light output and heat dissipation. The panel's RGBWW color mixing technology enables HSI, RGBW, Gel, and Effects modes, along with a green/magenta shift function for accurate color matching with other light sources. The quick-release softbox and innovative compression design allow for swift setup and collapse, making it perfect for on-the-go use. Additionally, the PavoSlim 60CL's multiple 1/4"-20 sockets and magnetic base adapters offer flexible mounting options, while the extended design ensures ease of setup and use in a variety of scenarios. Whether for film and television production, photography, or live streaming, the PavoSlim 60CL's high output, efficient design, and versatile features make it a reliable and indispensable lighting solution.

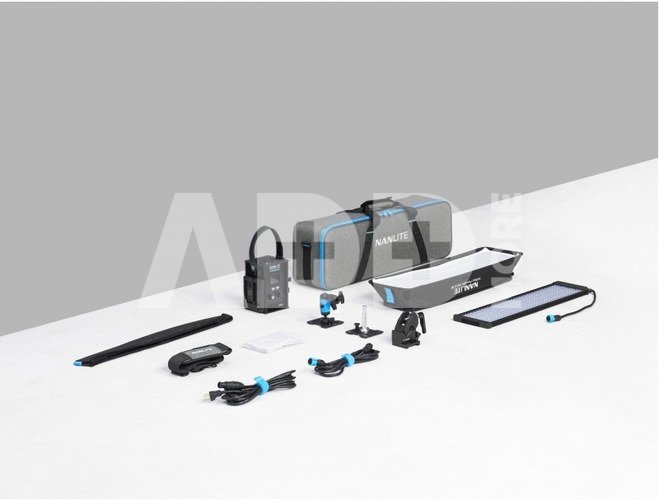

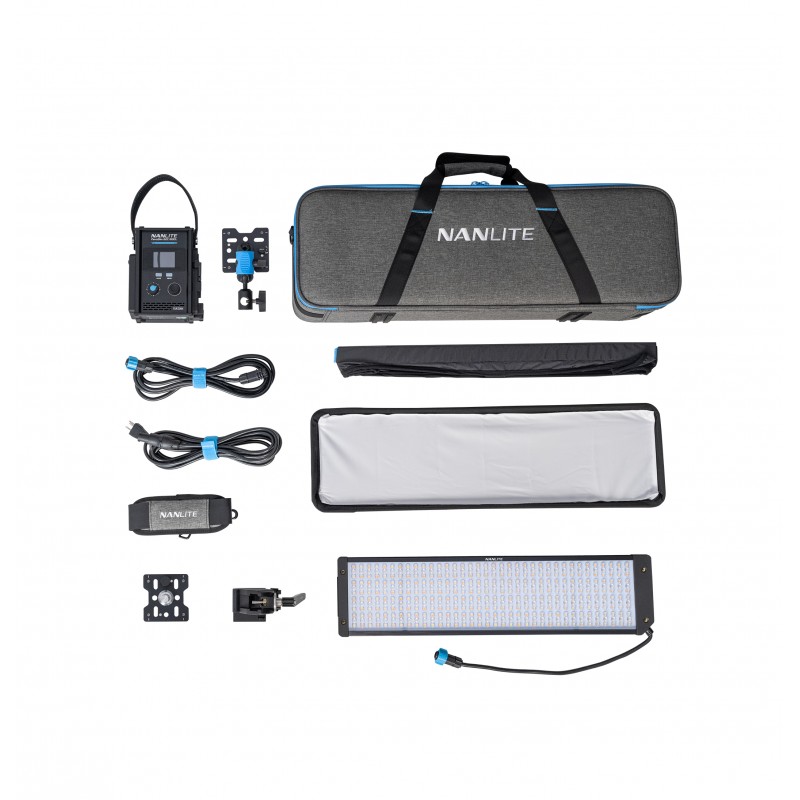

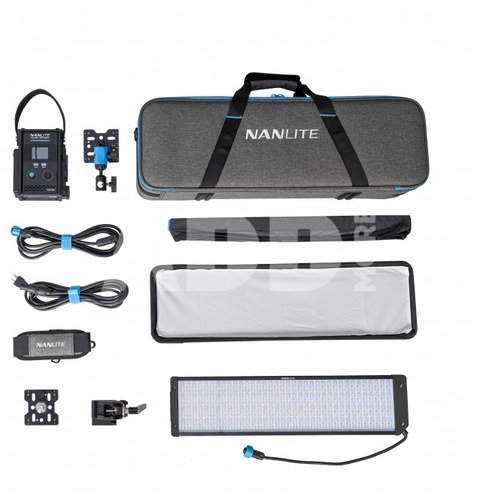

PACKAGE CONTENT



PavoSlim 60CL × 1,
Control Unit × 1,
Universal Holder × 1,
Quick Release Clamp × 1,
Baby Pin Holder × 1,
DC Connection Cable 2.6M × 1,
AC Power Cable 4.5M × 1,
Softbox × 1,
Diffuser × 2 (Standard Diffuser × 1+Lite Diffuser × 1)，

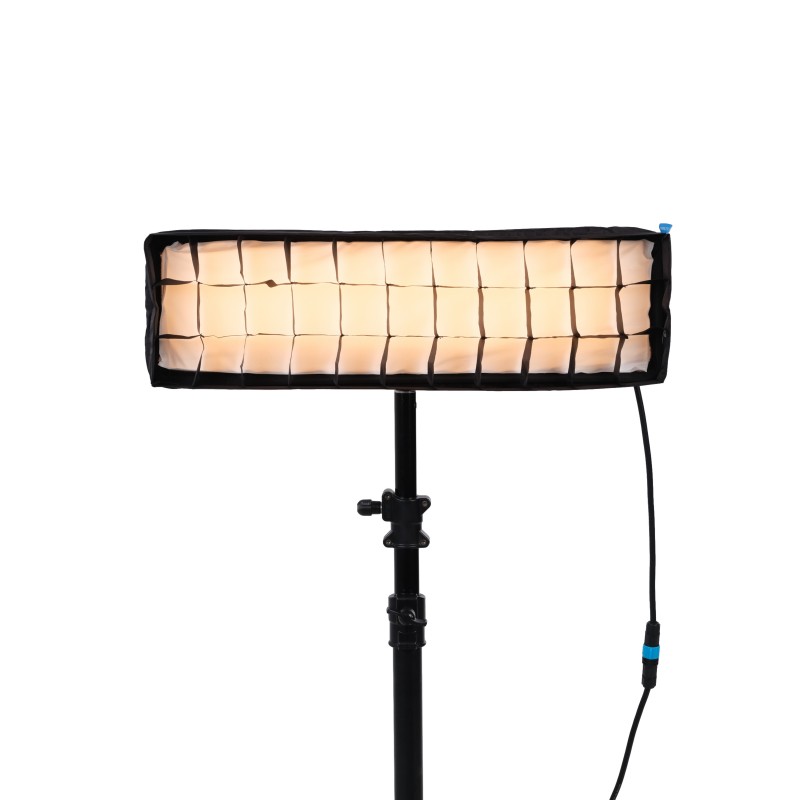

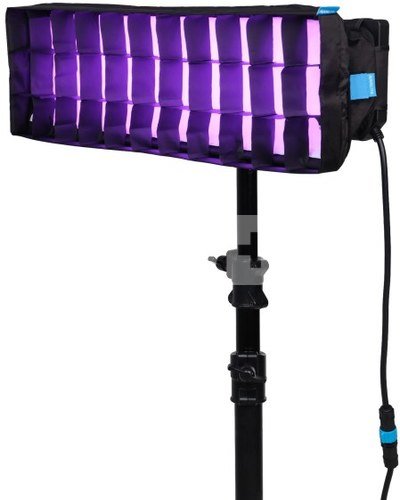

Eggcrate × 1,
Carrying Bag × 1,
User Manual × 1







SPECIFICATIONS





LED Power: 72 W
Color Temperature: 2700K-7500K (G/M ± 150)
Brightness(LUX): Illumination: 5600K: 22110 [email protected], 7094 lux@1m, 1912 lux@2m 3200K: 18700 [email protected], 6012 lux@1m, 1629 lux@2m R: 8280 [email protected], 2432lux@1m,651 lux@2m G: 15080 [email protected], 4445 lux@1m, 1143 lux@2m B: 2210 [email protected], 660 lux@1m, 166 lux@2m
Color Rendering Index (CRI): 96
TLCI(Qa): 97
Brightness Control: 0-100%
External Dimensions: Light Fixture: 602 × 152 × 18.6 mm; Control Unit: 146.45 × 111.48 × 175 mm
Net Weight: Light Fixture: 0.98 kg; Control Unit: 1.37 kg
Power Source: DC(Battery)14.4-26V DC(Battery)7.4V × 2 AC100-240V 50/60Hz
