Nucleus-M Motor Kit I

Code: 04253AVX

Manufacturer code: -

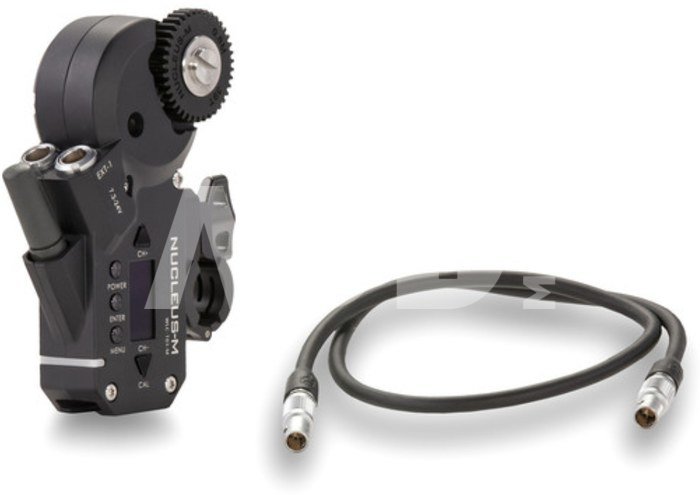

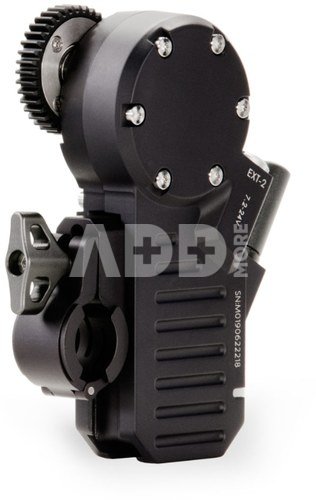

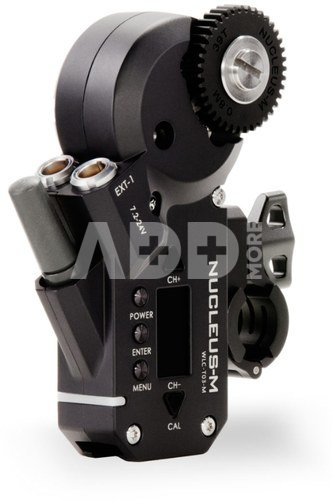

The Nucleus-M Motor Kit I from Tilta includes the compact Nucleus-M focus/iris/zoom brushless lens motor and a 22" 7-pin to 7-pin power cable. The motor also comes with a 19mm rod adapter that secures on the side and a 19-to-15mm bushing. The Nucleus-M motor features the cinema lens standard 0.8 MOD and offers high, medium, and low torque settings. Other features include automatic and manual calibration and a status window display.

Key Features:

Brushless motor with integrated motor drive
Standard gear 0.8 Mod, 35 teeth, 32 pitch
Motor clamps onto 19mm or 15mm rods (with included bushing)
Power supply via separately available D-Tap cable or chain connection to other motors
Automatic and manual calibration
For focus, aperture or zoom control
High, medium and low torque settings

Package Contents:

Nucleus-M motor
55 cm 7-pin cable to 7-pin Nucleus-M motor

Gearbox modification: 0.8
Gear pitch: 32
Number of gears: 35
Face Width: 0.4" / 10 mm
Operating Frequency: 2.4 GHz
Maximum Range 1640' / 500 m (unobstructed)
Emission Power 30-100 MW
Voltage 7.2-24 V
Rod compatibility 19, 15 mm
Noise level 15 dB

Delivery time 11-14 w.d.
