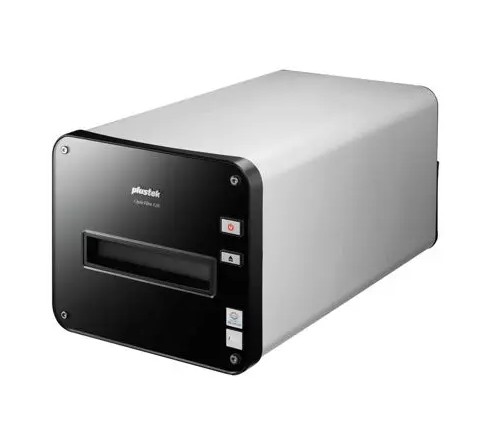

Plustek OpticFilm 120

Plustek OpticFilm 120 - professional medium format and 35mm photographic film scanner. The OpticFilm 120 delivers the professional image quality results from 35mm film strips, slides, and 120/220 film from 6x4.5cm up to 6x12cm in sizes. It is designed for professional photographers, advanced amateur photographers, film photo enthusiasts, photography schools and clubs.











SilverFast® Ai Studio 9



The OpticFilm 120 satisfies the film scanning requirements of advanced amateurs or professionals that require the ultimate in image quality and an ICC profiled scanning system. During the OpticFilm 120 development phase, LaserSoft Imaging with its more than 25 years of experience in digital imaging has significantly contributed to achieve the OpticFilm's superior quality.





OUTSTANDING RESOLUTION TO OUTPUT EXTRAORDINARY IMAGE



Sharpness: The outstanding image quality is assured by state of the art optical and electronic systems including an 8-element glass lens with 5,300 dpi measured resolution, high-sensitive color CCD with 10,600 dpi resolution, and stable light sources. High Dynamic Range: Delivering an effective usable Dynamic Range of 4.01 (with SilverFast Multi-Exposure®/ according to ISO 21550:2004) and a theoretically maximum density of 4.8, providing accurate color and all highlight and shadow details.





MULTIPLE FILM FORMATS SUPPORTED



Medium format – 120 roll film supports from 6×4.5 up to 6×12. 35mm format – 135 film strips or slides.









NEWLY DESIGNED FILM CARRIERS FOR FRIENDLY USAGE AND ACCURATE IMAGING AND EFFICIENT WORKFLOW

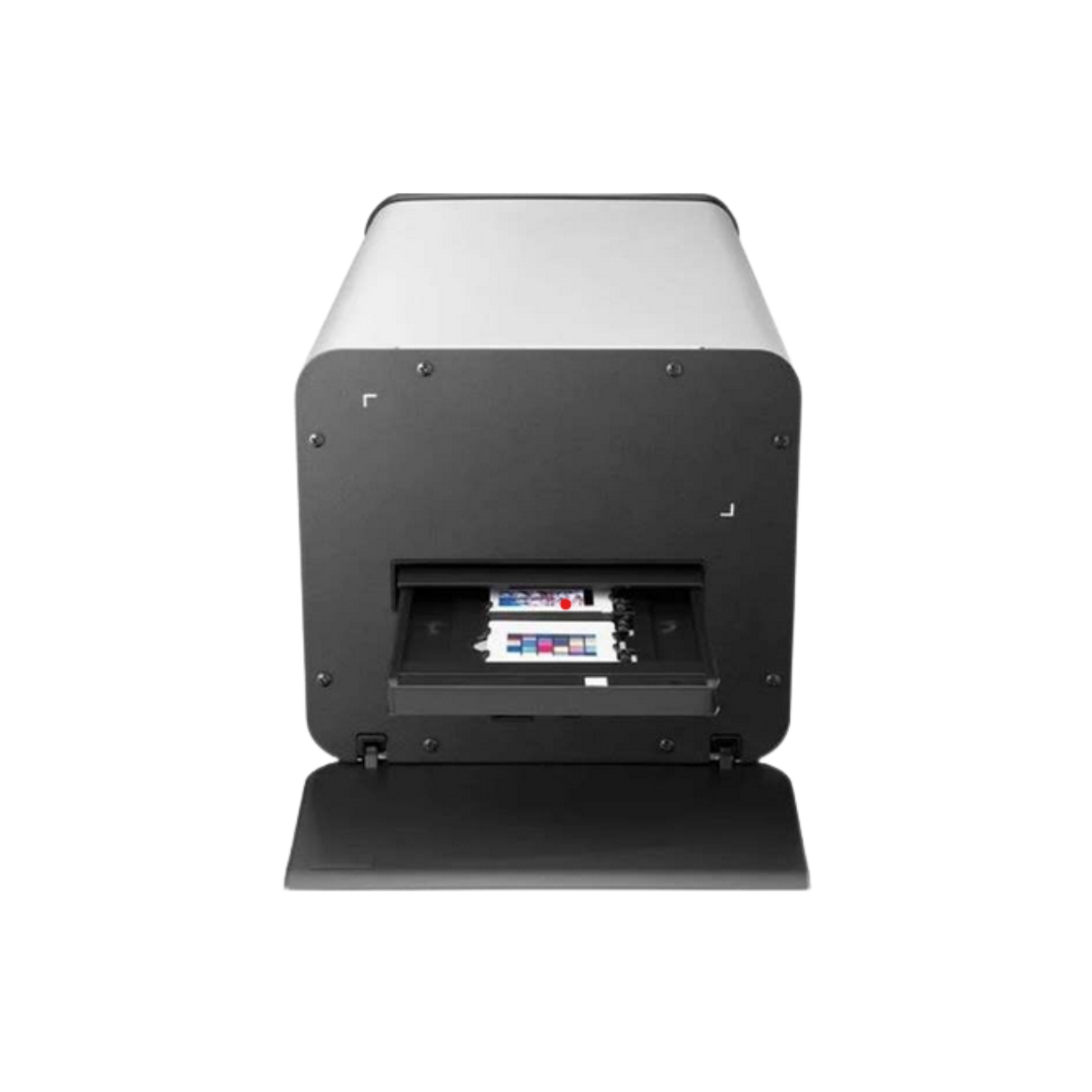

The OpticFilm 120 includes patented, adjustable pitch 120 film holders that ensures flat film for in-focus scans. Users do not need to cut 3-frame 6×7 120 film strips. The OpticFilm 120 also uses an automatic motorized film transport system that speeds the scanning workflow.





EASY TO LOAD

Heavy duty holders uses a magnet to hold the film very easily.





ELEGANT AND COMPACT DESIGN

The OpticFilm 120’s metal case provides isolation and stability for the lens, CCD and automatic transport assemblies.

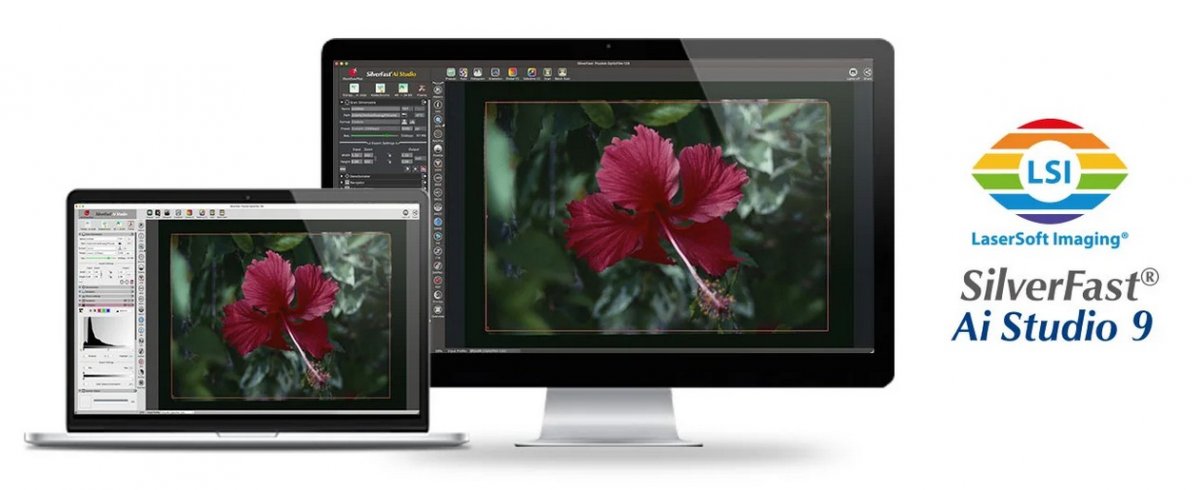

POWERED BY LaserSoft Imaging AG SilverFast®



Software plays an important role as hardware to deliver a brilliant image. The OpticFilm 120 comes with the world recognized professional film scanning software, SilverFast Ai Studio 9, and it is full functionality. The SilverFast software has individually adjusted color profiles of Plustek film scanner, and all features are well-combined and perfectly-integrated with the Opticfilm 120.

















SPECIFICATIONS



Image Sensor: CCD
Light Source: LED
Hardware Resolution: Maximum Input：10600 dpi; Maximum Output：5300 dpi
Scan Modes: Color: 48-bit input, 24/48-bit output; Grayscale: 16-bit input, 8/16-bit output
Dynamic Range: 4.01 (with SilverFast Multi-Exposure®/ according to ISO 21550:2004)
Infrared: Built-in
Scanning Area (width x length): 60 mm x 120 mm
IT8 Target: Included 6x7 IT 8 slide for color accuracy
Power Supply: 24 Vdc / 0.75 A
Interface: USB 2.0 Type B
Net Weight: approx. 6.3 Kgs
Dimensions (width x depth x height): 210 x 374 x 189 mm
Operating System: Windows 7 (64bit)/ 8 (64bit)/ 10 (64bit)/ 11; Mac OS 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x/ 13.x/ 14.x/ 15.x/ 26.x
Hardware Requirements: Windows PC: Multi-core processor with 64-bit support and 4 cores at least. 8 GB RAM main memory (16 GB RAM recommended). 4 GB free space on hard disk drive for the software file. 1024×768 screen resolution minimum. Up to 20 GB of free space on the main system hard disk drive for the cache. Internet connection. Mac (Intel and M1 processors): Multi-core processor with 64-bit support and 4 cores at least. 8 GB RAM main memory (16 GB RAM recommended). 4 GB free space on hard disk drive for the software file. 1024×768 screen resolution minimum. Up to 20 GB of free space on the main system hard disk drive for the cache. Internet connection.
Bundled Software: SilverFast Ai Studio 9
