Ulanzi Uka Quick Release Plate and Base Kit(=C007+C017)

The Ulanzi Uka C007 is a 78 g CNC-machined quick-release plate kit with 85 × 60 mm Arca-Swiss/F38/Uka dovetail compatibility, 20 kg dynamic payload (25 kg static), 0.8 s angled click-lock via stainless spring latch, dual safety pins, 1/4-turn knob, 11× 1/4"-20/4× 3/8"-16 threads, 4× ARRI locating holes, and four 6 mm lanyard loops—enabling secure, tool-free swaps for gimbals, cages, and tripods.

The Ulanzi Uka C007 quick-release system comprises a 85 × 60 mm dovetail plate and 15 mm base, both CNC-machined from 6061-T6 aluminum with hard-anodized black finish (Type III, 50 µm thickness, IP66 dust/water resistance), supporting a 20 kg dynamic payload (tested at 2 m/s² acceleration) and 25 kg static load via a 45° angled insertion mechanism that engages a stainless-steel spring latch (AISI 316, 50 N retention force) in under 0.8 s. The dovetail profile adheres to full Arca-Swiss (39 mm width, 10 mm depth) and F38/Uka standards, allowing multi-angle slides (0–90°) without play (<0.05 mm tolerance), secured by dual 3 mm stainless pins (shear strength 150 kg) and a 1/4-turn M4 knob (2 Nm torque). Threading includes 11× 1/4"-20 UNC (M6 equivalent) and 4× 3/8"-16 UNC holes, plus 4× 3 mm ARRI locating pins for precise alignment with Manfrotto, DJI RS, SmallRig, or Peak Design accessories. Four integrated 6 mm corner loops (nylon-reinforced) accommodate safety tethers (up to 100 kg breaking strength). Operating from –20 °C to +80 °C with zero-tool installation, the 78 g kit (plate 45 g, base 33 g) minimizes rig imbalance (CG shift <2 mm) for cinema, gimbals, or run-and-gun applications.

Key Features

• 0.8 s angled insertion with stainless spring latch (50 N hold)
• Secondary 1/4-turn M4 knob + dual 3 mm pins for redundant security
• Arca-Swiss (39 mm) + F38/Uka dovetail, 0–90° multi-angle compatible
• 11× 1/4"-20 UNC + 4× 3/8"-16 UNC threads; 4× ARRI 3 mm locators

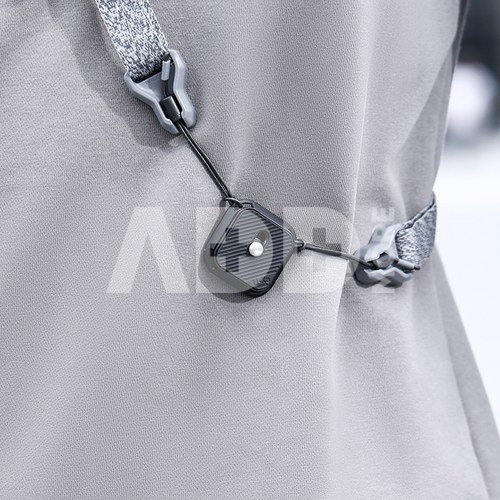

• Four 6 mm nylon-reinforced lanyard loops (100 kg tether rating)
• CNC 6061-T6 aluminum + AISI 316 stainless components
• Tool-free operation; IP66-rated anodizing

• 1 × Quick Release Plate and Base Kit
• 1 × Allen Wrench

• Material: Hard-anodized 6061-T6 aluminum (black), stainless steel (AISI 316)
• Plate Dimensions: 85 × 60 mm
• Base Height: 15 mm
• Weight: 78 g (kit: plate 45 g, base 33 g)
• Payload: 20 kg dynamic / 25 kg static
• Threads: 11 × 1/4"-20 UNC, 4 × 3/8"-16 UNC
• Locating Holes: 4 × ARRI 3 mm diameter
• Dovetail: 38 mm width (Arca-Swiss + F38/Uka compatible)
• Safety Mechanisms: Dual stainless pins (150 kg shear), spring latch (50 N)
• Temperature Range: –20 °C to +80 °C
• Ingress Protection: IP66 (dust-tight, high-pressure water jets)
